LED-machine light, with 40° beam angle, IP67, 112460003
Order No.: 07L4084
EAN: 4099891440725
MPN:
112460003
Unit Price (€ / pc.)
376.3613 € *
Available: 0 pcs.
Leadtime: 1 Week **

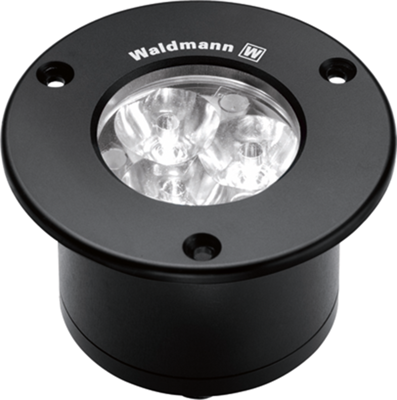

Machine LED lights for surface and panel mounting, type Waldmann SPOT LED 003 MC.
For easy integration into small-scale machinery or units, floodlight with 40° radiation angle, 10 W LED module and approx. 3.0 m connecting cable with bare stranded wire ends; Operation: 24 V AC/DC. Case material: black anodized aluminum. Lamp cover: glass lens. Degree of protection: IP 67. Safety class: III. Weight: approx. 0.4 kg.
Technical attributes (type, design, mounting): MCEYL 3 S, panel mounted, screw mounting
Technical specifications
| Art des Leuchtmittels | LED | |
| Ausführung | mit 40°-Abstrahlwinkel | |
| Explosionsgeschützt | No | |
| Gehäusematerial | Aluminium | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 94054990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
