12830002 | Weco
Flat plug connector, 2 pole, 4.8 x 0.8 mm, L 24 mm, insulated, straight, transparent, 1.0-6.0 mm², AWG 16-10, 12830002
Unit Price (€ / pc.)
0.3927 € *
Available: 1,422 pcs.
Leadtime: 4 Weeks **
Total Price:
7.85 € *
Price list
Quantity
Price per unit*
20 pcs.
0.3927 €
50 pcs.
0.3451 €
100 pcs.
0.3213 €
500 pcs.
0.3094 €
*incl. VAT plus shipping costs
**Subject to prior sale

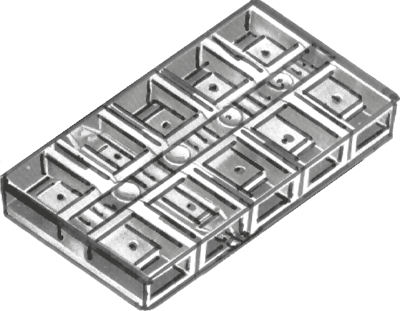

Tab terminal strips, type Weco 401-.
Splittable, for receptacles compliant with DIN 46247; Rated voltage: 380 V, to VDE 0110. Insulation group B, when used on insulated surface. Rated current: 16 A. Housing: soft PVC. Thermal resistance: max. +70 °C. Leakage current resistance: CTI greater than 400. Contacts: nickel-plated brass. The end of the plugged receptacle projects by approx. 7.0 mm over the housing. Dimensions calculated as follows: dimension L (length) = number of poles x 12.5 mm, fastening hole pitch as from 3-pole version = (number of poles - 2) x 12.3 mm.
For 4.8 mm mating width.
Technical attributes (type, number of poles): 401-PVC-4,8/02, 2-pole
Technical specifications
| Connection | crimp connection | |
| Version | flat plug connector, 2 pole | |
| AWG cross-section | AWG 16-10 | |
| Design | straight | |
| Insulation colour | transparent | |
| Isolated | Yes | |
| Length | 24 mm | |
| Cable cross-section | 1.0-6.0 mm² | |
| Material | brass, nickel-plated | |
| Nominal size according to DIN | DIN 46247 | |
| Plug width x plug thickness | 4.8 x 0.8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
