25870902 | Weco
Flat plug connector, 2 pole, 6.3 x 0.8 mm or 2.8 x 0.8 mm, L 8.5 mm, uninsulated, 1.0-2.5 mm², AWG 16-14, 25870902
Unit Price (€ / pc.)
0.5831 € *
Available: 50 pcs.
Leadtime: 8 Weeks **
Total Price:
5.83 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5831 €
50 pcs.
0.5355 €
100 pcs.
0.4879 €
500 pcs.
0.4641 €
*incl. VAT plus shipping costs
**Subject to prior sale

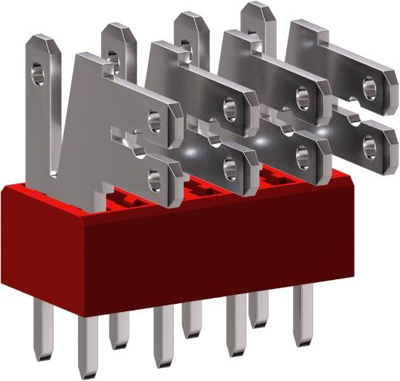

Tab strips for PCB mounting, type Weco 900-W.
For receptacles to DIN 46247. With combination tab terminal for 2.8 mm or 6.3 mm receptacles parallel to the PCB and an additional tab terminal for 2.8 mm receptacles in vertical position to the PCB. Rated current for 2.8/6; .3 mm receptacles: 6.0/15 A. Material: tinned brass. Mating thickness: 0.8 mm. Solder pin: 1.0 x 0.8 mm. Housing: polyamide, tough, self-extinguishing to UL 94 VDC2. Color: red. Leakage current resistance: CTI greater than 600. Operating temperatures: –40 to +80 °C. Degree of soiling: 3. Certifications: UL, CSA.
With 5.0 x 5.0 mm grid, type 900-W5.

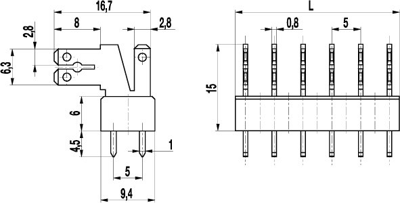

Rated voltage to VDE 0110: 250 V. Length (L) calculation: (number of poles - 1) x 5.0 + 3.5 mm.
Type: W 5/2, 2-pole
Technical specifications
| Connection | solder connection | |
| Version | flat plug connector, 2 pole | |
| AWG cross-section | AWG 16-14 | |
| Isolated | No | |
| Length | 8.5 mm | |
| Cable cross-section | 1.0-2.5 mm² | |
| Material | brass, tin-plated | |
| Nominal size according to DIN | DIN 46247 | |
| shrinkable tubing | No | |
| Plug width x plug thickness | 6.3 x 0.8 mm or 2.8 x 0.8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
