30830202 | Weco
Flat plug connector, 2 pole, 6.3 x 0.8 mm, L 22.5 mm, insulated, straight, transparent, 1.0-6.0 mm², AWG 16-10, 30830202
Unit Price (€ / pc.)
0.5355 € *
Available: 1,223 pcs.
Leadtime: On Request **
Total Price:
5.35 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5355 €
50 pcs.
0.4998 €
100 pcs.
0.4641 €
500 pcs.
0.4403 €
*incl. VAT plus shipping costs
**Subject to prior sale

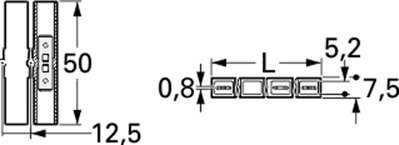

Tab terminal strips, type Weco 408-50.
Insulated, splittable, for tab receptacles; Grid: 12.5 mm. Rated voltage: 380 V. Degree of soiling: 2. Rated current: 6.0/25 A. Leakage current resistance: CTI > 600. Housing material: tough polyamide, self-extinguishing to UL 94 V-2. Color: plain. Tab terminals: nickel-plated brass. Operating temperatures: - 40 to +80 °C, briefly to +140 °C. Certifications: UL, CSA.
Mating width 6.3 mm, type 408-50-6,3/.
Technical attributes (type, number of poles, length L): 408-50-6,3/02, 2-pole, L 22.5 mm
Technical specifications
| Connection | crimp connection | |
| Version | flat plug connector, 2 pole | |
| AWG cross-section | AWG 16-10 | |
| Design | straight | |
| Insulation colour | transparent | |
| Isolated | Yes | |
| Length | 22.5 mm | |
| Cable cross-section | 1.0-6.0 mm² | |
| Material | brass, nickel-plated | |
| Nominal size according to DIN | DIN 46247 | |
| Plug width x plug thickness | 6.3 x 0.8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
