30870903 | Weco

Flat plug connector, 2 pole, 6.3 x 0.8 mm or 2.8 x 0.8 mm, L 13.5 mm, insulated, red, 1.0-2.5 mm², AWG 16-14, 30870903

Order No.: 07F5732
EAN: 4099889612219
MPN:
30870903
900-W-10/02
Series: 900-W

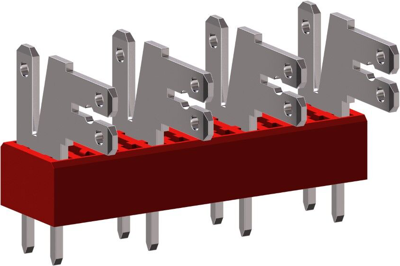

30870903 Weco Flat Plugs Image 1

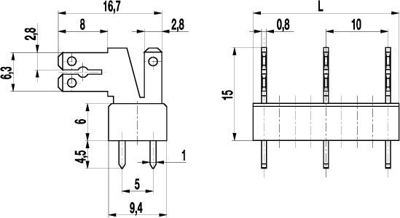

30870903 Weco Flat Plugs Image 2
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
119.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
250 pcs.
0.4760 €

Flat plug connector, 900-W-10/02, Weco

The tab connector 900-W-10/02 with double solder termination and a pitch of 10 mm is designed for 1 x 2.8 mm and 1 x 2.8 mm / 1 x 6.3 mm tab connector receptacles. Depending on the respective application it allows to plug in bare, partially or fully insulated tab receptacles according to DIN 46247. A non-insulated 2.8 mm or a 6.3 mm tab connector receptacle can be plugged in the angled plug-in area of the tab connector. To the vertical tab connector, a non-insulated 2.8 mm tab connector receptacle can be also be connected.

Technical specifications
Anschluss Lötanschluss
Ausführung Flachsteckerleiste, 2-polig
AWG-Leiterquerschnitt AWG 16-14
Farbe der Isolation rot
Isoliert Yes
Länge 13.5 mm
Leiterquerschnitt 1,0-2,5 mm²
Material Messing, verzinnt
Nenngröße nach DIN DIN 46247
Steckbreite x Steckdicke 6,3 x 0,8 mm oder 2,8 x 0,8 mm
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
