45870902 | Weco

Flat plug connector, 2 pole, 6.3 x 0.8 mm, L 8.5 mm, insulated, red, 2.5 mm², AWG 14, 45870902

Order No.: 07F6016
EAN: 4099889612356
MPN:
45870902
900-SUN-5/02
Series: 900-SUN
Weco
45870902 Weco Flat Plugs

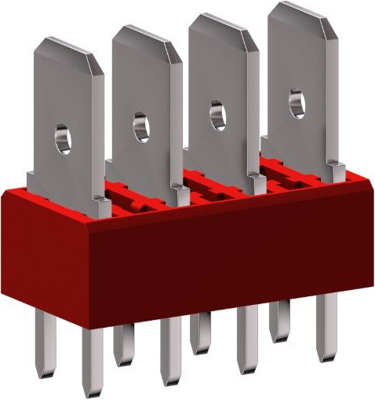

Image may differ
Unit Price (€ / pc.)
0.4046 € *
Available: 967 pcs.
Leadtime: On Request **
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4046 €
50 pcs.
0.3808 €
100 pcs.
0.3332 €
500 pcs.
0.3213 €
*incl. VAT plus shipping costs
**Subject to prior sale

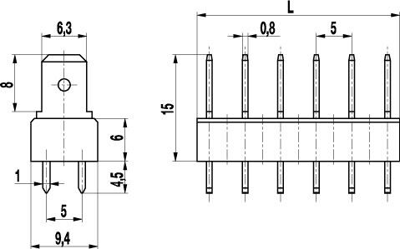

Tab strips for PCB mounting, type Weco 900-SUN.

For 6.3 mm receptacles to DIN 46247. Rated current 16 A; Material: tinned brass. Mating thickness: 0.8 mm. Solder pin: 1.0 x 0.8 mm. Housing: polyamide, tough, self-extinguishing to UL 94 V-0. Color: red. Leakage current resistance: CTI 600. Operating temperatures: –40 to +100 °C. Degree of soiling: 3. Certifications: UL, CSA.

5.0 mm grid, type 900-SUN 5.

Rated voltage: 320 V. Insulation voltage: 450 V .

Type: 900-SUN 5/2, 2-pole, L 5.5 mm

Technical specifications
Connection solder connection
Version flat plug connector, 2 pole
AWG cross-section AWG 14
Insulation colour red
Isolated Yes
Length 8.5 mm
Cable cross-section 2.5 mm²
Material brass, tin-plated
Nominal size according to DIN DIN 46247
Plug width x plug thickness 6.3 x 0.8 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
