45870910 | Weco
Flat plug connector, 10 pole, 6.3 x 0.8 mm, L 48.5 mm, insulated, red, 2.5 mm², AWG 14, 45870910
Unit Price (€ / pc.)
1.8326 € *
Available: 66 pcs.
Leadtime: On Request **
Total Price:
1.83 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8326 €
25 pcs.
1.5470 €
100 pcs.
1.4280 €
250 pcs.
1.3566 €
1000 pcs.
1.2376 €
*incl. VAT plus shipping costs
**Subject to prior sale

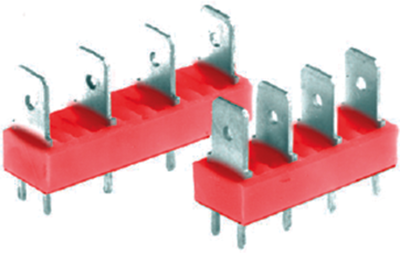

Tab strips for PCB mounting, type Weco 900-SUN.
For 6.3 mm receptacles to DIN 46247. Rated current 16 A; Material: tinned brass. Mating thickness: 0.8 mm. Solder pin: 1.0 x 0.8 mm. Housing: polyamide, tough, self-extinguishing to UL 94 V-0. Color: red. Leakage current resistance: CTI 600. Operating temperatures: –40 to +100 °C. Degree of soiling: 3. Certifications: UL, CSA.
5.0 mm grid, type 900-SUN 5.
Rated voltage: 320 V. Insulation voltage: 450 V .
Type: 900-SUN 5/10, 10-pole, L 48.5 mm
Technical specifications
| Connection | solder connection | |
| Version | flat plug connector, 10 pole | |
| AWG cross-section | AWG 14 | |
| Insulation colour | red | |
| Isolated | Yes | |
| Length | 48.5 mm | |
| Cable cross-section | 2.5 mm² | |
| Material | brass, tin-plated | |
| Nominal size according to DIN | DIN 46247 | |
| Plug width x plug thickness | 6.3 x 0.8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
