47870903 | Weco
Flat plug connector, 2 pole, 6.3 x 0.8 mm, L 11 mm, insulated, red, 2.5 mm², AWG 14, 47870903
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
0.45 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4522 €
50 pcs.
0.4284 €
100 pcs.
0.3808 €
500 pcs.
0.3570 €
*incl. VAT plus shipping costs
**Subject to prior sale

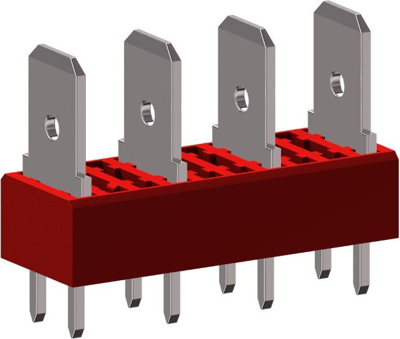

Flat plug connector, 900-SUN-7,5/02, Weco

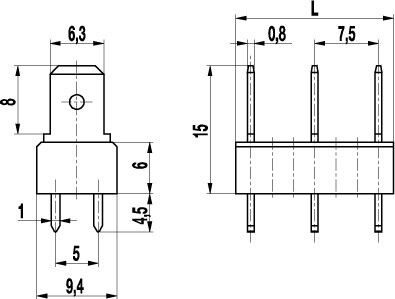

The tab connector 900-SUN-7.5/02 with double solder termination and a pitch of 7.5 mm is designed for 6.3 mm tab connector receptacles. Depending on the respective application it allows to plug in bare, partially or fully insulated tab receptacles according to DIN 46247. Insulation receptacles ISO-25 and ISO-250 can be used to insulate 6.3 mm tab receptacles.
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Flachsteckerleiste, 2-polig | |
| AWG-Leiterquerschnitt | AWG 14 | |
| Farbe der Isolation | rot | |
| Isoliert | Yes | |
| Länge | 11 mm | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | Messing, verzinnt | |
| Nenngröße nach DIN | DIN 46247 | |
| Steckbreite x Steckdicke | 6,3 x 0,8 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
