50870925 | Weco
Flat plug connector, 25 pole, 6.3 x 0.8 mm or 2.8 x 0.8 mm, L 123.5 mm, uninsulated, 1.0-2.5 mm², AWG 16-14, 50870925
Unit Price (€ / pc.)
4.8076 € *
Available: 32 pcs.
Leadtime: 20 Weeks **
Total Price:
4.81 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8076 €
10 pcs.
4.4744 €
50 pcs.
4.1174 €
100 pcs.
3.7485 €
*incl. VAT plus shipping costs
**Subject to prior sale

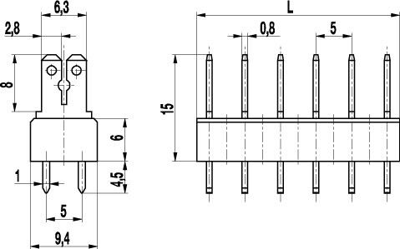

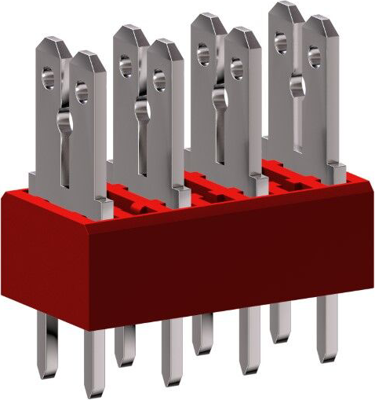

Flat plug connector, 900-S-5/25, Weco
The tab connector 900-S-5/25 with double solder termination and a pitch of 5 mm is designed for 1 x 2.8 mm or 1 x 6.3 mm tab connector receptacles. Depending on the respective application it allows to plug in bare, partially or fully insulated tab receptacles according to DIN 46247. Also non-insulated 2.8 mm or 6.3 mm tab receptacles can be plugged on these tab connectors. Insulation receptacles ISO-25 can be used to insulate 2.8 mm or 6.3 mm tab receptacles.
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Flachsteckerleiste, 25-polig | |
| AWG-Leiterquerschnitt | AWG 16-14 | |
| Isoliert | No | |
| Länge | 123.5 mm | |
| Leiterquerschnitt | 1,0-2,5 mm² | |
| Material | Messing, verzinnt | |
| Nenngröße nach DIN | DIN 46247 | |
| Steckbreite x Steckdicke | 6,3 x 0,8 mm oder 2,8 x 0,8 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
