75870918 | Weco
Flat plug connector, 12 pole, 6.3 x 0.8 mm or 2.8 x 0.8 mm, L 88.5 mm, uninsulated, 1.0-2.5 mm², AWG 16-14, 75870918
Unit Price (€ / pc.)
2.0825 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
2.08 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0825 €
25 pcs.
1.7493 €
100 pcs.
1.6184 €
250 pcs.
1.5470 €
1000 pcs.
1.4161 €
*incl. VAT plus shipping costs
**Subject to prior sale

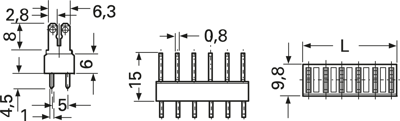

Tab strips for PCB mounting, type Weco 900-S.
For 2.8 and 6.3 mm receptacles to DIN 46247. Rated current 2.8/6.3 mm. 6.0/15 A; Material: tinned brass. Mating thickness: 0.8 mm. Solder pin: 1.0 x 0.8 mm. Housing: polyamide, tough, self-extinguishing to UL 94 VDC2. Color: red. Leakage current resistance: CTI greater than 600. Operating temperatures: –40 to +80 °C. Degree of soiling: 3. Certifications: UL, CSA.
With 7.5 x 5.0 mm grid, type 900-S7,5.
Rated voltage to VDE 0110: 500 V. Length (L) calculation: (number of poles - 1) x 7.5 + 3.5 mm.
Type: S 7,5/12, 12-pole
Technical specifications
| Connection | solder connection | |
| Version | flat plug connector, 12 pole | |
| AWG cross-section | AWG 16-14 | |
| Isolated | No | |
| Length | 88.5 mm | |
| Cable cross-section | 1.0-2.5 mm² | |
| Material | brass, tin-plated | |
| Nominal size according to DIN | DIN 46247 | |
| Plug width x plug thickness | 6.3 x 0.8 mm or 2.8 x 0.8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
