80870903 | Weco
Flat plug connector, 2 pole, 6.3 x 0.8 mm or 2.8 x 0.8 mm, L 13.5 mm, uninsulated, 1.0-2.5 mm², AWG 16-14, 80870903
Unit Price (€ / pc.)
0.4165 € *
Available: 476 pcs.
Leadtime: On Request **
Total Price:
4.17 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4165 €
50 pcs.
0.3927 €
100 pcs.
0.3451 €
500 pcs.
0.3213 €
*incl. VAT plus shipping costs
**Subject to prior sale

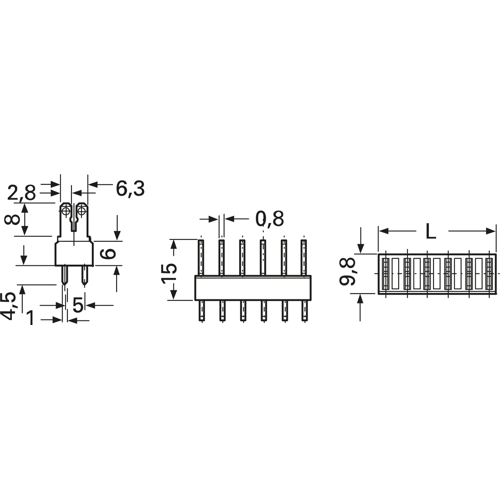

Tab strips for PCB mounting, type Weco 900-S.
For 2.8 and 6.3 mm receptacles to DIN 46247. Rated current 2.8/6.3 mm. 6.0/15 A; Material: tinned brass. Mating thickness: 0.8 mm. Solder pin: 1.0 x 0.8 mm. Housing: polyamide, tough, self-extinguishing to UL 94 VDC2. Color: red. Leakage current resistance: CTI greater than 600. Operating temperatures: –40 to +80 °C. Degree of soiling: 3. Certifications: UL, CSA.
With 10 x 5.0 mm grid, type 900-S10.
Rated voltage to VDE 0110: 600 V. Length (L) calculation: (number of poles - 1) x 10 + 3.5 mm.
Type: S 10/2, 2-pole
Technical specifications
| Connection | solder connection | |
| Version | flat plug connector, 2 pole | |
| AWG cross-section | AWG 16-14 | |
| Isolated | No | |
| Length | 13.5 mm | |
| Cable cross-section | 1.0-2.5 mm² | |
| Material | brass, tin-plated | |
| Nominal size according to DIN | DIN 46247 | |
| Plug width x plug thickness | 6.3 x 0.8 mm or 2.8 x 0.8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
