10806112 | Weco

Pin header, 12 pole, pitch 5.08 mm, angled, gray, 10806112

Order No.: 47F1222
EAN: 4099889997316
MPN:
10806112
121-M-111/12-K
Series: 121
Weco

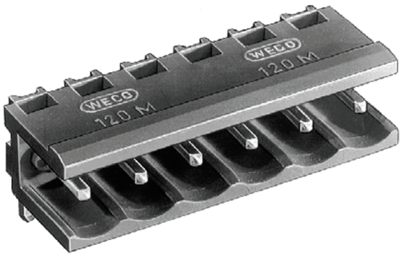

10806112 Weco PCB Connection Systems Image 1

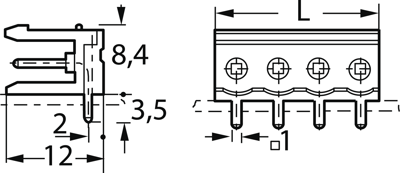

10806112 Weco PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.9401 € *
Available: 3,051 pcs.
Leadtime: On Request **
Total Price:
0.94 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.9401 €

Pin headers with angled solder pins, 5.08 mm grid, type 121-M.

Insertion in parallel to the PCB. Color: gray. Operating current: 12 A. Operating voltage: 600 V. Test voltage: min. 2.5 kV. Soiling class: 2. Housing: PA 6.6, self-extinguishing to UL 94 V-0. Leakage current resistance (CTI): min 600. Thermal resistance: short-term +140 °C, permanent - 40 to + 80 °C. Female contacts: tin bronze, tinned. solder pins: 1.0 x 1.0 mm, tinned brass. Screw terminals: M 3, zinc-coated steel, chromalized yellow. Dimensions: length L = number of poles x grid. Standards and certifications: UL, CSA, etc.

Type: 111/12, 12-pole

Technical specifications
Connection PCB connection
Number of rows 1
Version pin header
Additional parts equipped
Breakable No
Colour gray
Contact type pin
contact surface tin-plated
Rated voltage 630 V
Rated current 12 A
Orientation angled
Pin number 12 pole
Grid 5.08 mm
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
