10808102 | Weco

Socket header, 2 pole, pitch 5.08 mm, straight, gray, 10808102

Order No.: 47F1370
EAN: 4099889997460
MPN:
10808102
121-A-111/02-K
Series: 121

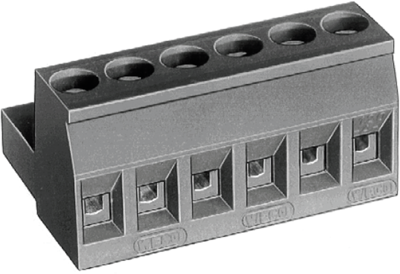

10808102 Weco PCB Connection Systems Image 1
10808102 Weco PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.4756 € *
Available: 219 pcs.
Leadtime: 20 Weeks **
Total Price:
1.48 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4756 €
100 pcs.
1.2733 €
400 pcs.
1.1186 €
*incl. VAT plus shipping costs
**Subject to prior sale

Multipole connectors, type Weco 120-A../121-A.

Screw connections; Rated cross-section: 1.5 mm² (AWG 26 - 14), max. 2.5 mm². Stripping length: 7.0 mm. Electrical and mechanical values same as the pin headers.

With 5.08 mm grid, type 121-A.

Technical attributes (type, number of poles): 111/02, 2–pole

Technical specifications
Connection Schraubanschluss
Connection plating verzinnt
Number of rows 1
Version Buchsenleiste
Additional parts bestückt
Breakable No
Colour grau
Contact type Buchse
contact surface verzinnt
Rated voltage 630 V
Rated current 12 A
Orientation gerade
Pin number 2-polig
Grid 5.08 mm
Type of locking Ja
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
