10808105 | Weco

Socket header, 5 pole, pitch 5.08 mm, straight, gray, 10808105

Order No.: 47F1376
EAN: 4099889997491
MPN:
10808105
121-A-111/05-K
Series: 121
Weco

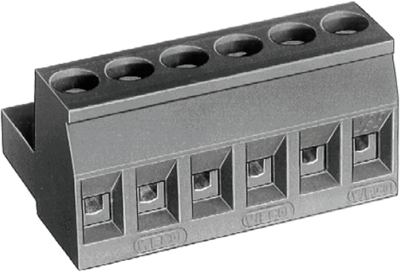

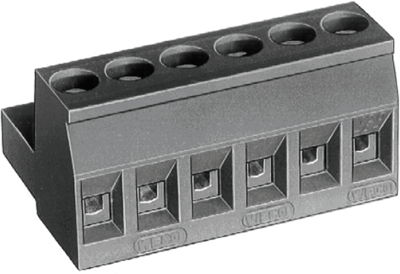

10808105 Weco PCB Connection Systems Image 1
10808105 Weco PCB Connection Systems Image 2
10808105 Weco PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
2.6061 € *
Available: 20 pcs.
Leadtime: 8 Weeks **
Total Price:
2.61 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6061 €
25 pcs.
2.2253 €
100 pcs.
2.0587 €
250 pcs.
1.9516 €
1000 pcs.
1.7731 €
*incl. VAT plus shipping costs
**Subject to prior sale

Multipole connectors, type Weco 120-A../121-A.

Screw connections; Rated cross-section: 1.5 mm² (AWG 26 - 14), max. 2.5 mm². Stripping length: 7.0 mm. Electrical and mechanical values same as the pin headers.

With 5.08 mm grid, type 121-A.

Technical attributes (type, number of poles): 111/05, 5–pole

Technical specifications
Connection screw connection
Connection plating tin-plated
Number of rows 1
Version socket header
Additional parts equipped
Breakable No
Colour gray
Contact type socket
contact surface tin-plated
Rated voltage 630 V
Rated current 12 A
Orientation straight
Pin number 5 pole
Grid 5.08 mm
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
