10808107 | Weco

Socket header, 7 pole, pitch 5.08 mm, straight, gray, 10808107

Order No.: 47F1380
EAN: 4099889997514
MPN:
10808107
121-A-111/07-K
Series: 121

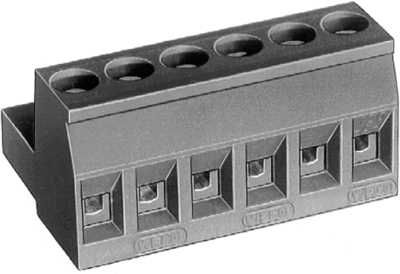

10808107 Weco PCB Connection Systems Image 1
10808107 Weco PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
4.1174 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
4.12 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1174 €
10 pcs.
3.6295 €
100 pcs.
3.1654 €
250 pcs.
3.0464 €
1000 pcs.
2.8560 €
*incl. VAT plus shipping costs
**Subject to prior sale

Multipole connectors, type Weco 120-A../121-A.

Screw connections; Rated cross-section: 1.5 mm² (AWG 26 - 14), max. 2.5 mm². Stripping length: 7.0 mm. Electrical and mechanical values same as the pin headers.

With 5.08 mm grid, type 121-A.

Technical attributes (type, number of poles): 111/07, 7–pole

Technical specifications
Connection Schraubanschluss
Connection plating verzinnt
Number of rows 1
Version Buchsenleiste
Additional parts bestückt
Breakable No
Colour grau
Contact type Buchse
contact surface verzinnt
Rated voltage 630 V
Rated current 12 A
Orientation gerade
Pin number 7-polig
Grid 5.08 mm
Type of locking Ja
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
