20806109 | Weco

Pin header, 9 pole, pitch 5 mm, straight, gray, 20806109

Order No.: 47F1114
EAN: 4099889997149
MPN:
20806109
121-M-121/09-K
Series: 121
Weco

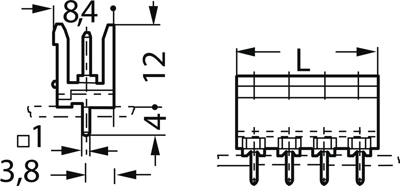

20806109 Weco PCB Connection Systems Image 1

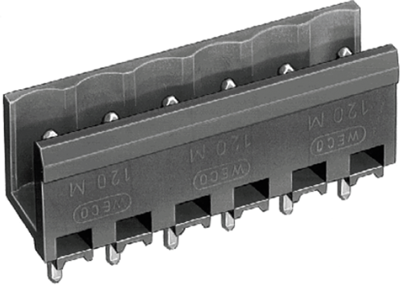

20806109 Weco PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.4756 € *
Available: 43 pcs.
Leadtime: 20 Weeks **
Total Price:
14.76 € *
Price list
Quantity
Price per unit*
10 pcs.
1.4756 €
50 pcs.
1.2971 €
250 pcs.
1.1305 €
1000 pcs.
0.9877 €
2500 pcs.
0.8925 €
*incl. VAT plus shipping costs
**Subject to prior sale

Pin headers, straight, with solder pins, type Weco Conecta 120-M../121-M.

Insertion direction vertically to the PCB; Color: gray. Operating current: 12 A. Operating voltage: 600 V. Test voltage: min. 2.5 kV. Soiling class: 2. Housing: PA 6.6, self-extinguishing to UL 94 V-0. Leakage current resistance (CTI): min 600. Thermal resistance: short-term +140 °C, permanent –40 to + 80 °C. Female contacts: tin bronze, tinned. solder pins: 1.0 x 1.0 mm, tinned brass. Screw terminals: M 3, zinc-coated steel, chromalized yellow. Dimensions: length L = number of poles x grid. Standards and certifications: UL, CSA, etc.

With 5.08 mm grid, type 121-M.

Type: 121/09, 9-pole

Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe grau
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 630 V
Nennstrom 12 A
Orientierung gerade
Polzahl 9-polig
Rastermaß 5 mm
Verriegelung Ja
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
