10801483 | Weco

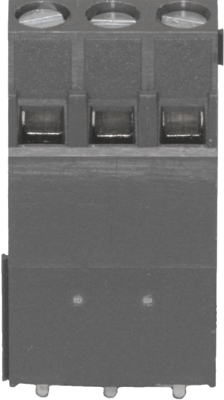

PCB terminal, 3 pole, pitch 5 mm, AWG 26-16, 16 A, screw connection, gray, 10801483
Abgekündigt
Unit Price (€ / pc.)
1.6779 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
167.79 € *
Price list
Quantity
Price per unit*
100 pcs.
1.6779 €
500 pcs.
1.6065 €
1000 pcs.
1.4637 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB screw connector, type Weco
With solder pins for PCB mounting and screw terminals with lift system. Dovetail interlocking feature for multi-pole assembly and different design.
Raised design with wire entrance in parallel to PCB, type, type 140-E-111/03
The terminal space of this design protrudes distinctly above components or housing edges placed in front of them. The terminal strip is suitable for use on molded PCBs.
Strip length: 15 mm
Shell: tough polyamide, self-extinguishing
PCB hole diameter: 1.2 mm
Rated cross-section: 1.5 mm²
Technical specifications
| Connection | Schraubanschluss | |
| AWG cross-section | AWG 26-16 | |
| Colour | grau | |
| Height | 28 mm | |
| Contact distance | RM 5/5,08 | |
| Cable cross-section | 0,14-2,5 mm² | |
| Rated voltage | 300 V | |
| Rated current | 16 A | |
| Pin number | 3-polig | |
| Grid | 5 mm | |
| Depth | 9 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
