20871054 | Weco

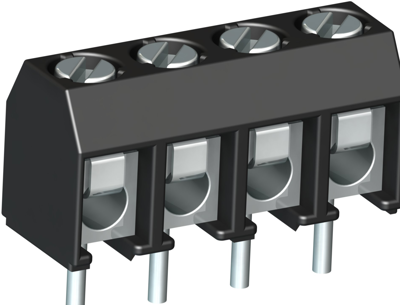

PCB terminal, 4 pole, pitch 5 mm, AWG 22-14, 17 A, screw connection, gray, 20871054
PCB screw connector, type Weco
With solder pins for PCB mounting and screw terminals. For in-line installation without pole loss or grid compliance; Shell: polyamide, gray, UL 94 V-0. Terminal body: tinned brass. Wire protection: tin bronze. Screw: M 2.6, steel, galvanized. Solder pin: 1.0 mm, copper, tinned. Rated cross-section: 1.5 mm². Rated current: 17.5 A. Rated voltage: 250 V (2-8-pole type 940), 200 V (10-20-pole type 940), 160 V (type 941/950/951) compliant with EN 60664-1. Terminating range: without wire protection up to 2.5 mm² single-wire, with wire protection up to 1.5 mm² fine-wire. Thermal resistance: –40 to +100 °C. Certifications: SEV, UL, CSA.
5.0 mm grid, wire entrance parallel to PCB.
Screwing: from the top
Technical attributes (type, number of poles, Version, length (L)): 950-DS/04, 4-pole, wire protection, L 20 mm
| Anschluss | Schraubanschluss | |
| AWG-Leiterquerschnitt | AWG 22-14 | |
| Breite | 8 mm | |
| Farbe | grau | |
| Höhe | 14.2 mm | |
| Leiterquerschnitt | 0,34-2,5 mm² | |
| Nennspannung | 160 V | |
| Nennstrom | 17 A | |
| Polzahl | 4-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 10 mm |
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
