22820009 | Weco

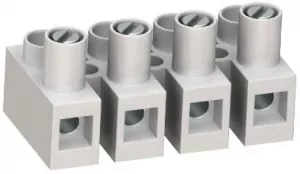

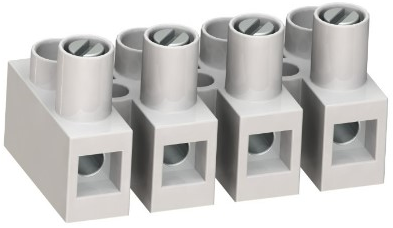

Connection terminal (plug), 12 pole, 2.5 mm², white, screw connection, 6 A, 22820009
Unit Price (€ / pc.)
3.4034 € *
Available: 243 pcs.
Leadtime: 20 Weeks **
Total Price:
3.40 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4034 €
10 pcs.
2.9869 €
100 pcs.
2.6180 €
250 pcs.
2.5228 €
1000 pcs.
2.3562 €
*incl. VAT plus shipping costs
**Subject to prior sale
Terminals, type Weco Serie 300-S.

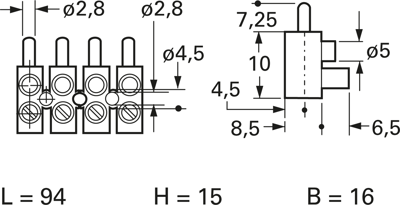

12-pole, can be separated, screw terminal strips and with or without wire protection; Grid: 8.0 mm. Terminating range with/without wire protection: up to 2.5/4.0 mm² solid wire, or to 1.5/2.5 mm² fine-wire. Rated voltage: 400 V. Rated current: 6.0 A. Thermal resistance: –40 to +80 °C (briefly to +140 °C). Shell: tough polyamide, plain colored, self-extinguishing. Terminal body: nickel-plated brass. Dimensions LxHxW: 94 x 15 x 16 mm (7.25 mm pin). Certifications: UL, CSA.
Type: 302-STS, male connector without wire protection
Technical specifications
| Connection | screw connection | |
| Version | connection terminal | |
| AWG cross-section | AWG 16 | |
| Colour | white | |
| Cable cross-section | 2.5 mm² | |
| Rated current | 6 A | |
| Pin number | 12 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
