34821002 | Weco
Connection terminal, 12 pole, 4.0 mm², white, screw connection, 26 A, 34821002
Unit Price (€ / pc.)
4.7362 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
4.74 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7362 €
10 pcs.
4.1531 €
100 pcs.
3.6533 €
250 pcs.
3.5105 €
1000 pcs.
3.2963 €
*incl. VAT plus shipping costs
**Subject to prior sale

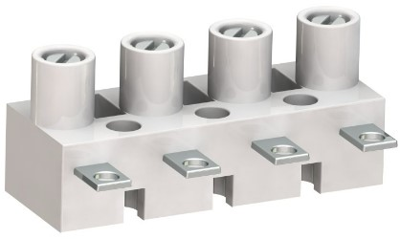

Combination screw/solder terminal strips, type Weco 322-LFS-DS/12.

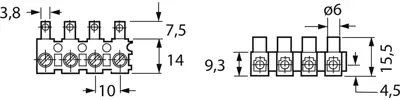

12-pole, can be separated, made of polyamide, self-extinguishing, plain colored. Terminal/solder lug made of timed brass, with wire protection; Grid: 10 mm. Rated voltage: 400 V. Rated current: 26 A. Terminating range solid wire/fine-wire: up to 4.0/2.5 mm². Thermal resistance: –40 to +80 °C (briefly to +140 °C). Dimensions LxWxH: 117 x 21.5 x 15.5 mm. Certifications: UL, CSA, NEMKO.
Type: 322-LFS-DS/12, solder terminal strip
Technical specifications
| Connection | screw connection | |
| Version | connection terminal | |
| Colour | white | |
| Cable cross-section | 4.0 mm² | |
| Rated current | 26 A | |
| Pin number | 12 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
