42822038EN6 | Weco
Connection terminal, 12 pole, 2.5 mm², white, screw connection, 24 A, 42822038EN6
Unit Price (€ / pc.)
4.4149 € *
Available: 1 pcs.
Leadtime: 3 Weeks **
Total Price:
4.41 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4149 €
10 pcs.
3.8794 €
100 pcs.
3.4272 €
250 pcs.
3.2963 €
1000 pcs.
3.0464 €
*incl. VAT plus shipping costs
**Subject to prior sale

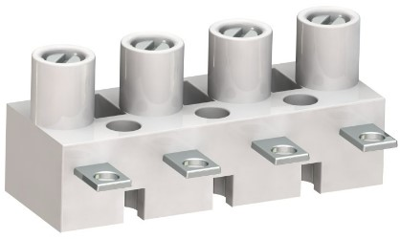

Terminal with wire protection, 10 mm grid, Weco series 323-HDS, "no flame"
12-pole, made of PA 6.6, plain colored, UL 94 V-0, terminal shell made of nickel-plated brass with wire protection.

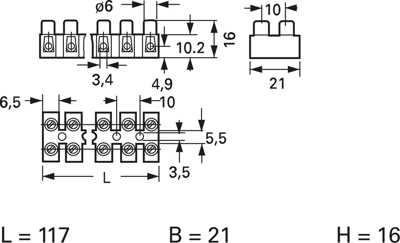

Dimensions: Length 117 mm, Width 21 mm, Height 16 mm
Technical specifications
| Connection | screw connection | |
| Version | connection terminal | |
| AWG cross-section | AWG 20-12 | |
| Colour | white | |
| Cable cross-section | 2.5 mm² | |
| Rated current | 24 A | |
| Pin number | 12 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
