82820009 | Weco

Connection terminal, 12 pole, 2.5 mm², white, screw connection, 6 A, 82820009

Order No.: 09H2896
EAN: 4099891041359
MPN:
82820009
302-STS-DS/12
Series: 302-ST
Weco

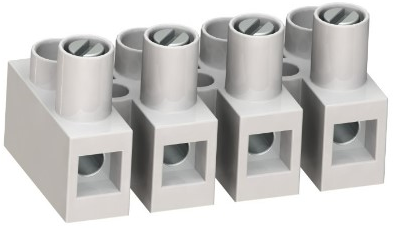

82820009 Weco Terminal Blocks Image 1

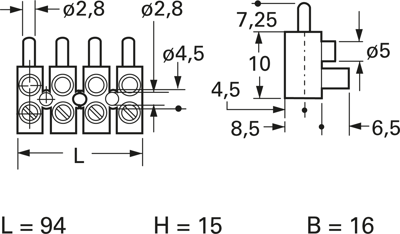

82820009 Weco Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
4.5934 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
4.59 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5934 €
10 pcs.
4.0222 €
100 pcs.
3.5343 €
250 pcs.
3.4034 €
1000 pcs.
3.1654 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminals, type Weco Serie 300-S.

12-pole, can be separated, screw terminal strips and with or without wire protection; Grid: 8.0 mm. Terminating range with/without wire protection: up to 2.5/4.0 mm² solid wire, or to 1.5/2.5 mm² fine-wire. Rated voltage: 400 V. Rated current: 6.0 A. Thermal resistance: –40 to +80 °C (briefly to +140 °C). Shell: tough polyamide, plain colored, self-extinguishing. Terminal body: nickel-plated brass. Dimensions LxHxW: 94 x 15 x 16 mm (7.25 mm pin). Certifications: UL, CSA.

Type: 302-STS-DS, male connector with wire protection

Technical specifications
Anschluss Schraubanschluss
Ausführung Anschlussklemme
AWG-Leiterquerschnitt AWG 16
Farbe weiß
Leiterquerschnitt 2,5 mm²
Nennstrom 6 A
Polzahl 12-polig
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
