10006786 | WEICON
Stripping pliers for Flexible cables/Solid conductors, 0.2-6.0 mm², AWG 24-10, L 165 mm, 105 g, 10006786
Order No.: 12L5634
EAN: 4024596000226
MPN:
10006786
No.5 blau/rot
Unit Price (€ / pc.)
22.7171 € *
Available: 5 pcs.
Leadtime: 2 Weeks **

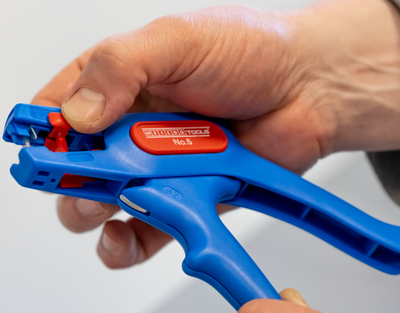

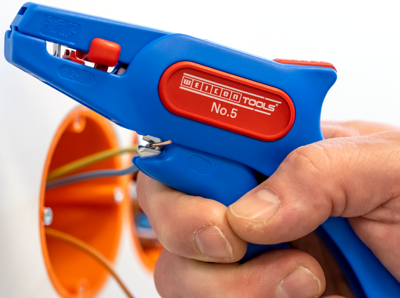

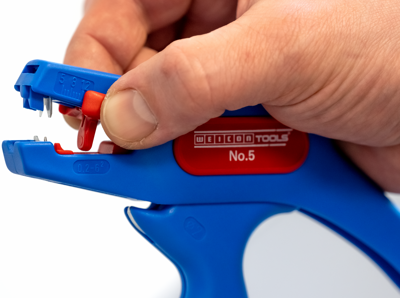

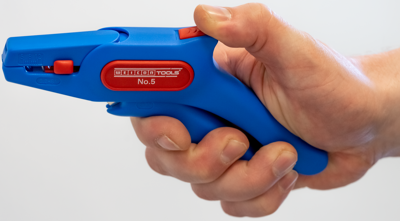

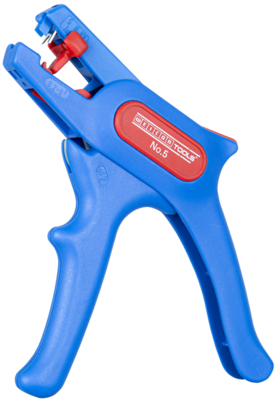

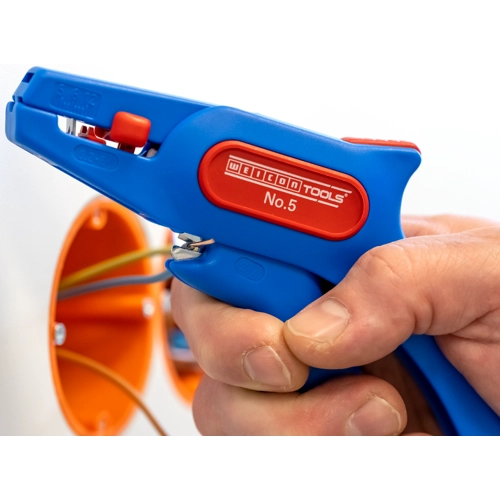

Wire Stripper, WEICON STRIPPER NO.5, WEICON
Wire Stripper for all common stranded and solid conductors.
The No. 5 wire stripper can strip all flexible and solid conductors from 0.2 - 6.0 mm². The pliers have an adjustable length stop from 5 - 12 mm. The length stop can be removed if necessary. An easily accessible side cutter is integrated into the tool, which can be used up to a cable diameter of 2 mm. The blades are interchangeable. The low weight of the No.5 ensures fatigue-free working.
Technical specifications
| Stripping Length | 12 mm | |
| AWG cross-section | AWG 24-10 | |
| Suitable for | Flexible Kabel/Massive Leitern | |
| Weight | 105 g | |
| Length | 165 mm | |
| Cable cross-section | 0,2-6,0 mm² | |
| Product type | Abisolierzange | |
| 1000V Insulated | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
