2003170000 | Weidmüller

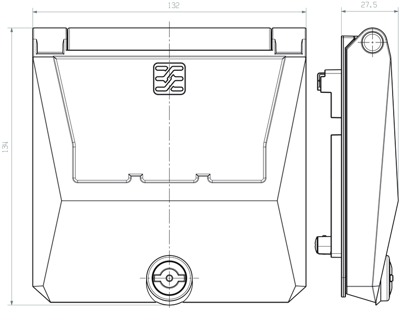

Frame, zinc die casting, (W x H x D) 132 x 134 x 27.5 mm, 2003170000
Unit Price (€ / pc.)
62.4512 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

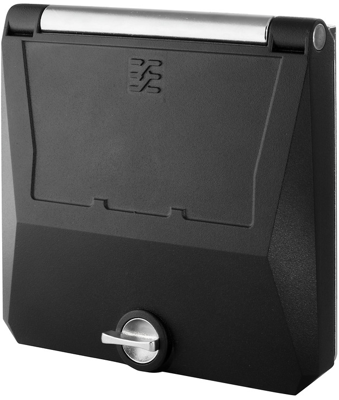

Double frame, 2003170000, WEIDMÜLLER
FrontCom, double frame, metal cover, control knob locking. FrontCom Vario integrates multiple functions in only one single frame. The system is easy to install and you can select from a wide range of data, signal and power modules. In addition to being extremely compact, FrontCom Vario offers a number of unique product features that will make your project planning and work activities secure, fast and future-proof. Furthermore, the FrontCom Vario system has an attractive housing design that, by the way, offers highest impact-resistance and fully meets the requirements of IP 65 protection class.
Technical specifications
| Width | 132 mm | |
| Height | 134 mm | |
| Material | zinc die casting | |
| Degree of protection (IP) | IP65 | |
| Depth | 27.5 mm | |
| Accessory Type | frame |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
