0261500000 | Weidmüller
Cable gland, PG9, 15/17 mm, Clamping range 6 to 8 mm, IP54, silver, 0261500000
Order No.: 50P0691
EAN: 4008190155438
MPN:
0261500000
VG 9-MS54
Unit Price (€ / pc.)
3.1178 € *
Available: 98 pcs.
Leadtime: 2 Weeks **
Total Price:
3.12 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1178 €
10 pcs.
2.8679 €
50 pcs.
2.6061 €
100 pcs.
2.3443 €
*incl. VAT plus shipping costs
**Subject to prior sale

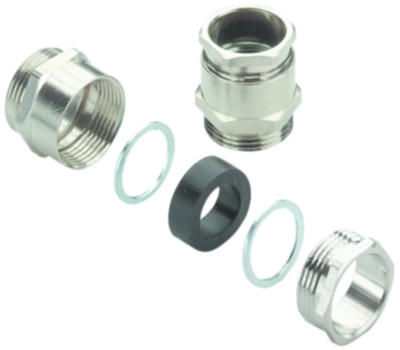

Cable gland, 0261500000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. PG 9, 6 mm, 8 mm, 6 mm, Brass, Nickel plated.
Technical specifications
| Version | cable gland | |
| Colour | silver | |
| Thread size | PG9 | |
| Length | 22 mm | |
| Material | brass, nickel-plated | |
| max. clamping range | 8 mm | |
| max. operating temperature | 60 °C | |
| min. clamping range | 6 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 15/17 mm | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
