Cable gland, M20, 24 mm, Clamping range 11.5 to 16 mm, IP54, silver, 1135680000
Unit Price (€ / pc.)
19.0519 € *
Available: 0 pcs.
Available in 5 Days: 20 pcs.
Leadtime: 8 Weeks **
Total Price:
19.05 € *
Price list
Quantity
Price per unit*
5 pcs.
19.0519 €
10 pcs.
17.1241 €
*incl. VAT plus shipping costs
**Subject to prior sale

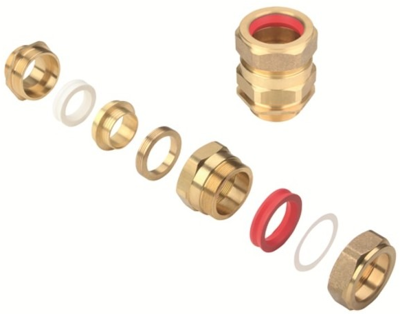

Cable gland, 1135680000, Weidmüller
Cable gland for use in hazardous areas. It is suitable for armored and non-armored cables, for use in Ex e (increased safety) and Ex d (flameproof enclosure) applications.
Technical specifications
| Version | cable gland | |
| Colour | silver | |
| Thread size | M20 | |
| Length | 58 mm | |
| Material | brass, nickel-plated | |
| max. clamping range | 16 mm | |
| max. operating temperature | 180 °C | |
| min. clamping range | 11.5 mm | |
| min. operating temperature | -60 °C | |
| spanner size | 24 mm | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
