1656390000 | Weidmüller
Cable gland, PG11, 18 mm, Clamping range 7.5 to 12.5 mm, IP65, silver, 1656390000
Order No.: 51P8587
EAN: 4008190409401
MPN:
1656390000
KV 11-M
Unit Price (€ / pc.)
9.1749 € *
Available: 0 pcs.
Available in 6 Days: 50 pcs.
Leadtime: On Request **

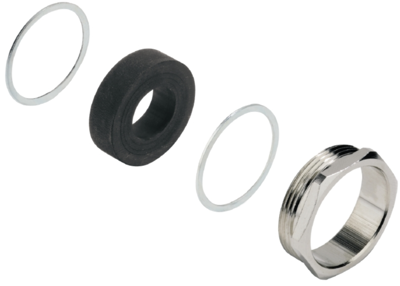

Cable gland, 1656390000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Version | cable gland | |
| Colour | silver | |
| Thread size | PG11 | |
| Material | brass, nickel-plated | |
| max. clamping range | 12.5 mm | |
| max. operating temperature | 60 °C | |
| min. clamping range | 7.5 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 18 mm | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
