1720490000 | Weidmüller
Cable gland with bend protection, PG11, 22 mm, Clamping range 5 to 10 mm, IP68, light gray, 1720490000
Order No.: 51P9674
EAN: 4008190358709
MPN:
1720490000
VG 11-K68 SKS
Unit Price (€ / pc.)
2.2253 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

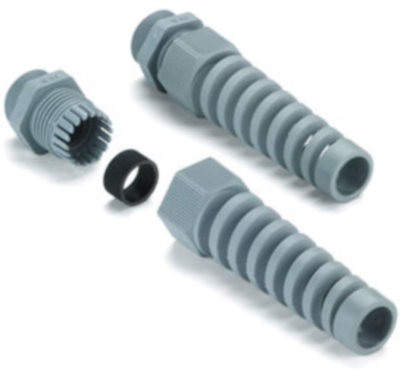

Cable gland, 1720490000, Weidmüller
Plastic cable gland for reliable sealing of cables with strain relief. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Version | cable gland with bend protection | |
| Colour | light gray | |
| Thread size | PG11 | |
| Length | 87 mm | |
| Material | PA | |
| max. clamping range | 10 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 5 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 22 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
