1776700000 | Weidmüller

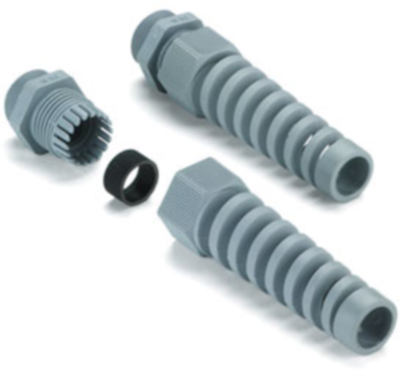

Cable gland with bend protection, M12, 15 mm, Clamping range 3 to 6.5 mm, IP68, light gray, 1776700000
Order No.: 52P1087
EAN: 4032248156122
MPN:
1776700000
VG M12-K68 SKS
Unit Price (€ / pc.)
1.3685 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Cable gland, 1776700000, Weidmüller
Plastic cable gland for reliable sealing of cables with strain relief. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Version | cable gland with bend protection | |
| Colour | light gray | |
| Thread size | M12 | |
| Length | 63.5 mm | |
| Material | PA | |
| max. clamping range | 6.5 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 3 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 15 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
