1776710000 | Weidmüller
Cable gland with bend protection, M16, 22 mm, Clamping range 5 to 10 mm, IP68, light gray, 1776710000
Order No.: 52P1088
EAN: 4032248156139
MPN:
1776710000
VG M16-K68 SKS
Unit Price (€ / pc.)
1.5827 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **

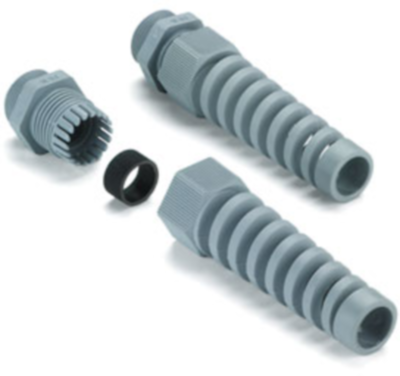

Cable gland, 1776710000, Weidmüller
Plastic cable gland for reliable sealing of cables with strain relief. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Version | cable gland with bend protection | |
| Colour | light gray | |
| Thread size | M16 | |
| Length | 94.5 mm | |
| Material | PA | |
| max. clamping range | 10 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 5 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 22 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
