1778420000 | Weidmüller
Cable gland, M12, 14/16 mm, Clamping range 5 to 7 mm, IP54, silver, 1778420000
Order No.: 52P1131
EAN: 4032248161430
MPN:
1778420000
VGM12-MS54 ZE 5,0-7,0
Unit Price (€ / pc.)
8.1515 € *
Available: 0 pcs.
Leadtime: On Request **

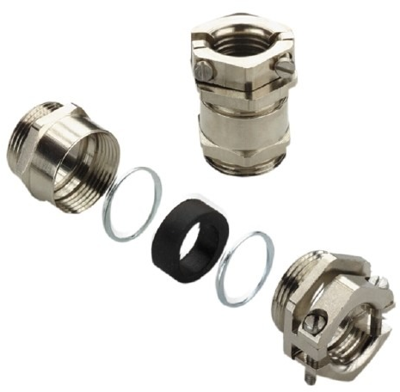

Cable gland, 1778420000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Colour | silber | |
| Thread size | M12 | |
| Length | 27 mm | |
| Material | Messing, vernickelt | |
| max. clamping range | 7 mm | |
| max. operating temperature | 80 °C | |
| min. clamping range | 5 mm | |
| min. operating temperature | -20 °C | |
| Product type | Kabelverschraubung | |
| spanner size | 14/16 mm | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
