1921720000 | Weidmüller

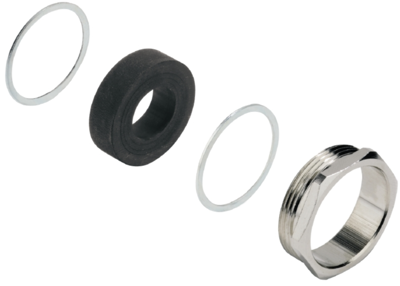

Cable gland, M20, 20 mm, Clamping range 4 to 13 mm, IP65, silver, 1921720000
Order No.: 52P6013
EAN: 4032248562909
MPN:
1921720000
VG H M20 MS
Unit Price (€ / pc.)
1.9754 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Cable gland, 1921720000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Version | cable gland | |
| Colour | silver | |
| Thread size | M20 | |
| Material | brass, nickel-plated | |
| max. clamping range | 13 mm | |
| max. operating temperature | 60 °C | |
| min. clamping range | 4 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 20 mm | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
