7940006076 | Weidmüller
Cable tie, PA, (L x W) 225 x 12.5 mm, bundle-Ø 7.5 to 57 mm, natural, -40 to 85 °C, 7940006076
Order No.: 53P4084
EAN: 4032248520183
MPN:
7940006076
CB 225/12.5 NATUR
Unit Price (€ / pc.)
0.3213 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **

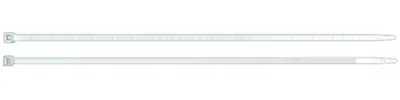

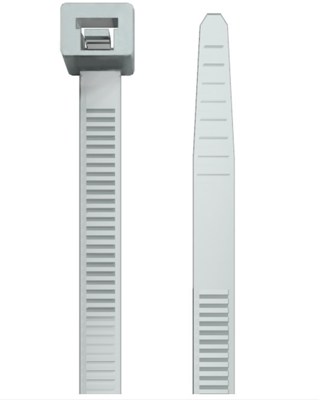

Cable tie, 7940006076, WEIDMÜLLER
The 7940006076 is a cable tie suitable for the fastening of cables and markers. This product is made of fracture-resistant polyamide PA 6.6 with flammability rating V2 to UL-94.
Technical specifications
| Width | 12.5 mm | |
| Chemical resistant | Yes | |
| Colour | natural | |
| Halogen free | Yes | |
| Length | 225 mm | |
| Material | PA | |
| max. Bundle diameter | 57 mm | |
| max. operating temperature | 85 °C | |
| min. Bundle diameter | 7.5 mm | |
| min. operating temperature | -40 °C | |
| UV-resistant | No | |
| detachable closure | No | |
| Min holding force | 1080 N |
Download
Logistics
| Country of origin | HR |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
