1207700000 | Weidmüller
Socket contact insert, 6, 16 pole, equipped, screw connection, with PE contact, 1207700000
Unit Price (€ / pc.)
15.2558 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **
Total Price:
15.26 € *
Price list
Quantity
Price per unit*
1 pcs.
15.2558 €
10 pcs.
14.0301 €
50 pcs.
12.7687 €
100 pcs.
11.4954 €
*incl. VAT plus shipping costs
**Subject to prior sale

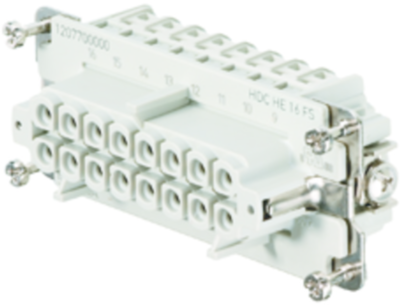

Contact insert, 1207700000, Weidmüller
The 1207700000 insert enables efficient signal transmission of up to 16 contacts at maximum 16 A and 500 V.
Features
- The wire connection level is designed for screw connections
- All screw connections are equipped with a wire protection spring
- Screw connection
Technical specifications
| Version | socket insert | |
| Additional parts | equipped | |
| Shell size | 6 | |
| Contact connection | screw connection | |
| PE contact | Yes | |
| Pin number | 16 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
