1651300000 | Weidmüller
Socket contact insert, 8, 108 pole, unequipped, crimp connection, with PE contact, 1651300000
Unit Price (€ / pc.)
20.3490 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
20.35 € *
Price list
Quantity
Price per unit*
1 pcs.
20.3490 €
10 pcs.
18.7187 €
50 pcs.
17.2193 €
100 pcs.
15.6723 €
*incl. VAT plus shipping costs
**Subject to prior sale

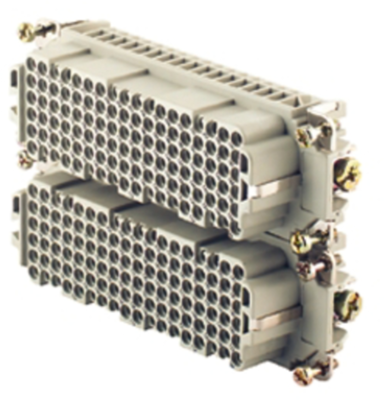

Contact insert, 1651300000, Weidmüller
The 1651300000 is a machined crimp contact and is designed for high pole counts in tight spaces. This insert is specially developed for crimp/fibre-optic contacts and provide a packing density of up to 108 poles. According to the smaller design, you can save installation space during without having to limit the number of poles.
Features
- The wire connection level is designed for crimp contacts
- The proven crimp connection method has been in standard use for decades
- Crimp connection
- Rated current: 10 A
Technical specifications
| Version | socket insert | |
| Additional parts | unequipped | |
| Shell size | 8 | |
| Contact connection | crimp connection | |
| PE contact | Yes | |
| Pin number | 108 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
