1651310000 | Weidmüller

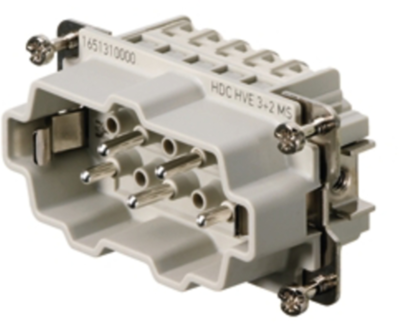

Pin contact insert, 4, 5 pole, equipped, screw connection, with PE contact, 1651310000
Unit Price (€ / pc.)
12.9948 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **
Total Price:
12.99 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9948 €
10 pcs.
11.9595 €
50 pcs.
10.8766 €
100 pcs.
9.7937 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contact insert, 1651310000, Weidmüller
High-voltage insert is equipped with two lagging contacts. This results in more security during real operations.
Features
- The wire connection level is designed as a screw element
- All screw connections are equipped with a wire protection spring
- Screw connection
- Rated current: 24 A
Technical specifications
| Version | pin insert | |
| Additional parts | equipped | |
| Shell size | 4 | |
| Contact connection | screw connection | |
| PE contact | Yes | |
| Pin number | 5 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
