1967210000 | Weidmüller
Pin contact insert, 8, 12 pole, equipped, tension clamp connection, with PE contact, 1967210000
Unit Price (€ / pc.)
22.8361 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
22.84 € *
Price list
Quantity
Price per unit*
1 pcs.
22.8361 €
10 pcs.
21.0154 €
50 pcs.
19.3256 €
100 pcs.
17.5882 €
*incl. VAT plus shipping costs
**Subject to prior sale

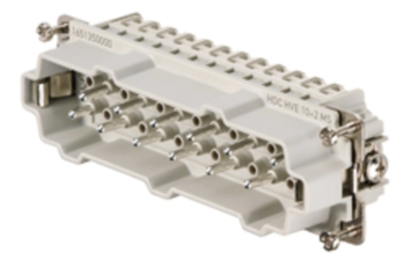

Contact insert, 1967210000, Weidmüller
High-voltage insert is equipped with two lagging contacts. This results in more security during real operations. In addition, a secure and permanent connection is established which is resistant to vibrations.
Features
- The wire connection level is designed as a crimp contact
- Thus practically no servicing is required
- Tension clamp connection
- Rated current: 23 A
Technical specifications
| Version | pin insert | |
| Additional parts | equipped | |
| Shell size | 8 | |
| Contact connection | tension clamp connection | |
| PE contact | Yes | |
| Pin number | 12 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
