8390590000 | Weidmüller

Relay coupler 1 Form C (NO/NC), 6 A, 24 V (DC), 8390590000

Order No.: 53P4416
EAN: 4008190213060
MPN:
8390590000
MCZ R 24VUC
Series: MCZ-SERIES
Weidmüller

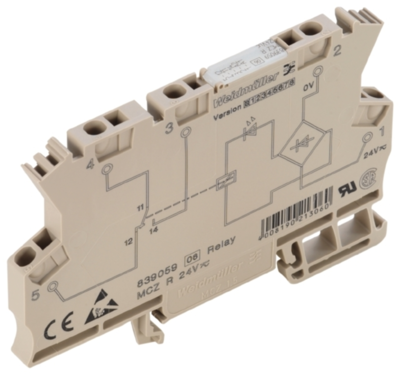

8390590000 Weidmüller Coupling Relays Image 1
8390590000 Weidmüller Coupling Relays Image 2
8390590000 Weidmüller Coupling Relays Image 3
Image may differ
Unit Price (€ / pc.)
30.2498 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
30.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
30.2498 €

Relay coupler, 8390590000, Weidmüller

Relay coupler, open on one side, for railroad applications, 24 V UC ±10 %, LED green, rectifier, 1 changeover contact (AgSnO), 250 VAC, 6 A, tension clamp connection, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.

Technical specifications
Connection spring-clamp connection
Version Relay coupler
Contact type 1 Form C (NO/NC)
Contact material AgSnO
Rated voltage (DC) 24 V
Rated current 6 A
Degree of protection (IP) IP20
Status display LED, green
Logistics
Country of origin SK
Customs tariff number 85364110
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
