8881610000 | Weidmüller
Relay coupler 2 Form C (NO/NC), 1440 Ω, 8 A, 24 V (DC), 8881610000
Order No.: 53P5149
EAN: 4032248631865
MPN:
8881610000
RCIKIT 24VDC 2CO LD/PB
Series: RIDERSERIES RCI
Unit Price (€ / pc.)
19.3732 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

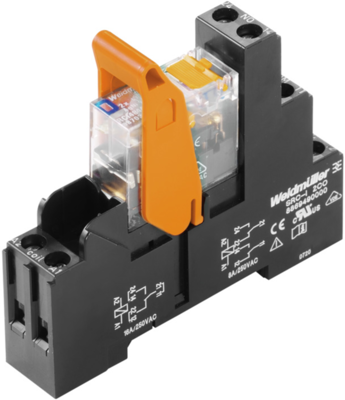

Relay coupler, 8881610000, Weidmüller
Relay coupler, 24 VDC, LED green, Free-wheeling diode, 2 changeover contacts with test button (AgNi 90/10), 250 VAC, 8 A, Screw connection, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Relaiskoppler | |
| Kontaktart | 2 Wechsler | |
| Kontaktmaterial | AgNi | |
| Nennspannung (DC) | 24 V | |
| Nennstrom | 8 A | |
| Schutzart (IP) | IP20 | |
| Spulenwiderstand | 1440 Ω | |
| Statusanzeige | LED, grün |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85364110 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
