8897220000 | Weidmüller
Relay coupler 1 Form C (NO/NC), 32500 Ω, 16 A, 230 V (AC), 8897220000
Order No.: 53P5169
EAN: 4032248646999
MPN:
8897220000
RCIKITP230VAC 1CO LD/PB
Series: RIDERSERIES RCI
Unit Price (€ / pc.)
25.1566 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

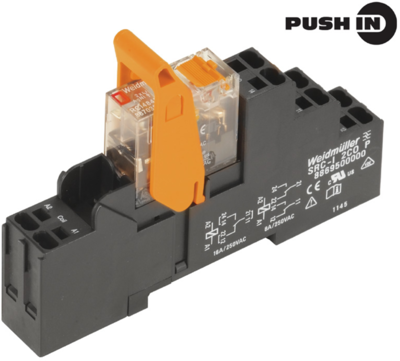

Relay coupler, 8897220000, Weidmüller
Relay coupler, 230 VAC, LED red, 1 changeover contact with test button (AgNi 90/10), 250 VAC, 16 A(1, PUSH IN, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.
Technical specifications
| Connection | Push-in clamp | |
| Version | Relay coupler | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgNi | |
| Rated voltage (AC) | 230 V | |
| Rated current | 16 A | |
| Degree of protection (IP) | IP20 | |
| Coil resistance | 32500 Ω | |
| Status display | LED, red |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
