1426700000 | Weidmüller
Pin contact, 0.75-1.5 mm², AWG 18-16, crimp connection, gold-plated, 1426700000
Unit Price (€ / pc.)
1.2138 € *
Available: 200 pcs.
Available in 6 Days: 1,250 pcs.
Leadtime: On Request **

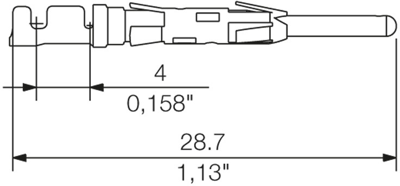

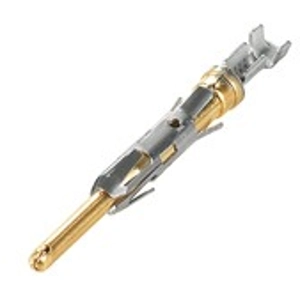

Pin contact, 1426700000, Weidmüller
The 1426700000 is a pin contact standard. This product enables custom adaptations to the specific requirements of your applications.
Features
- Safe centring of the contacts using the three-segment pin tips
- High contact reliability using four defined contact points
- Locking clasp in the cantilever spring for a secure mount of the contacts in the housing
- Pin contacts with two lengths to implement leading-pin contacts
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 18-16 | |
| Insulation diameter | 2-2.5 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| contact surface | gold-plated | |
| Cable cross-section | 0.75-1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
