1426900000 | Weidmüller
Receptacle, 0.75-1.5 mm², AWG 18-16, crimp connection, gold-plated, 1426900000
Unit Price (€ / pc.)
1.2852 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

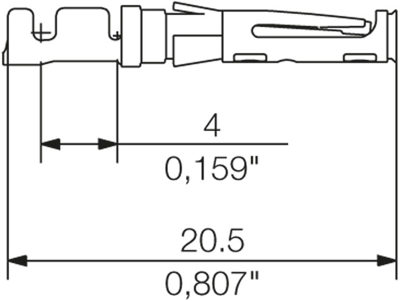

Socket contact, 1426900000, Weidmüller
The 1426900000 is a socket contact. This product enables custom adaptations to the specific requirements of your applications.
Features
- Safe centring of the contacts using the three-segment pin tips
- High contact reliability using four defined contact points
- Locking clasp in the cantilever spring for a secure mount of the contacts in the housing
- Pin contacts with two lengths to implement leading-pin contacts
Technical specifications
| Ausführung | Buchsenkontakt | |
| AWG-Leiterquerschnitt | AWG 18-16 | |
| Isolationsdurchmesser | 2-2,5 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche | vergoldet | |
| Leiterquerschnitt | 0,75-1,5 mm² |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
