1582430000 | Weidmüller

Receptacle, 0.75-1.5 mm², AWG 18-16, crimp connection, tin-plated, 1582430000

Order No.: 51P7066
EAN: 4008190050450
MPN:
1582430000
CB1,6E18-16 SN I3,5
Series: CB
Weidmüller
1582430000 Weidmüller Crimp Contacts Image 1
1582430000 Weidmüller Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
1.0115 € *
Available: 153 pcs.
Available in 6 Days: 1,250 pcs.
Leadtime: On Request **
Total Price:
1.01 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0115 €
10 pcs.
0.9282 €
50 pcs.
0.8449 €
100 pcs.
0.7616 €
*incl. VAT plus shipping costs
**Subject to prior sale

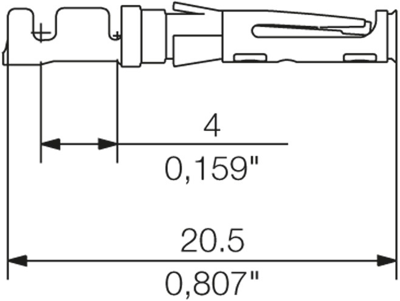

Socket contact, 1582430000, Weidmüller

The 1582430000 is a socket contact. This product enables custom adaptations to the specific requirements of your applications.

Features

  • Safe centring of the contacts using the three-segment pin tips
  • High contact reliability using four defined contact points
  • Locking clasp in the cantilever spring for a secure mount of the contacts in the housing
  • Pin contacts with two lengths to implement leading-pin contacts
Technical specifications
Version receptacle
AWG cross-section AWG 18-16
Insulation diameter 2-3.5 mm
Contact connection crimp connection
Contact material brass
contact surface tin-plated
Cable cross-section 0.75-1.5 mm²
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
