9012500000 | Weidmüller
Crimping pliers for wire end ferrules, 0.5-4.0 mm², AWG 21-12, Weidmüller 9012500000
Unit Price (€ / pc.)
228.5038 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **
Total Price:
228.50 € *
Price list
Quantity
Price per unit*
1 pcs.
228.5038 €
5 pcs.
217.0917 €
10 pcs.
206.2270 €
*incl. VAT plus shipping costs
**Subject to prior sale

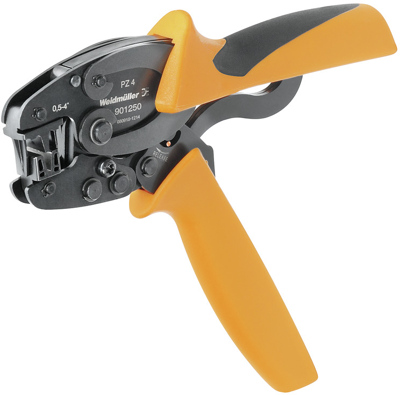

Crimp tool PZ 4 from Weidmüller
For trapezoidal crimping of wire end ferrules with and without plastic collar to fine-wire conductors, wire insertion from the side. Crimping cannot be interrupted, except by releasing. Made of special tool steel, with insulated handles.
Length: 200 mm
Weight (PZ 4): 448 g
Conductor range: 0.5 to 4.0 mm²
Technical specifications
| Crimping Range (AWG) | AWG 21-12 | |
| Crimping Range (mm²) | 0.5-4.0 mm² | |
| Suitable for | wire end ferrules | |
| Weight | 448 g | |
| Length | 200 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
