2737520000 | Weidmüller
PV generator terminal box, 2.5-16 mm², IP65, 2737520000
Unit Price (€ / pc.)
705.2892 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

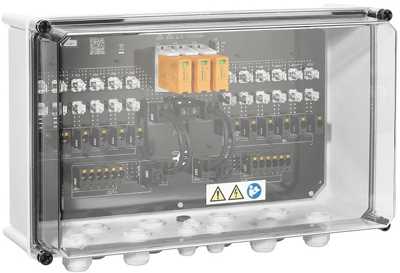

Combiner box, 2737520000, Weidmüller
The 2737520000 is a PV Next combiner box for inverters with 1 MPP tracker is used to protect the DC side of a photovoltaic system. The combiner box protects the inverter against overvoltages and thus comply with the European Directive EN 51543-32. In addition, this product offers the possibility to protect the system against reverse currents and the possibility to combine strings to save cables during installation.
Technical specifications
| Ausführung | PV Generatoranschlusskasten | |
| Leiterquerschnitt | 2,5-16 mm² | |
| Schutzart (IP) | IP65 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85371095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
