0191220000 | Weidmüller
Fuse terminal block, 2 pole, 0.5-10 mm², 500 V, 10 A, 0191220000
Unit Price (€ / pc.)
16.2554 € *
Available: 0 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **

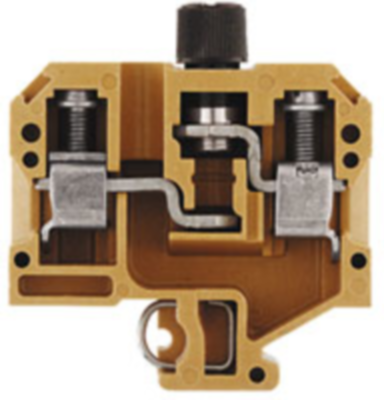

Fuse terminal block, 0191220000, Weidmüller
Fuse terminal block, screw connection, fuse element, open on one side, screw connection, 10 mm², 500 V, 10 A, G-Si. 5x20, TS 32, medium yellow.
Fuse terminal block consisting of a terminal block base with fuse link carrier.
Technical specifications
| Version | Sicherungs-Reihenklemme | |
| Number of terminals | 2 | |
| Pin number | 2-polig | |
| Cable cross-section | 0,5-10 mm² | |
| AWG cross-section | AWG 26 bis 10 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Rated current | 10 A | |
| Degree of soiling | 3 | |
| Length | 61 mm | |
| Width | 13 mm | |
| Height | 54 mm | |
| Connection | Schraubanschluss | |
| Colour | gelb |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
