0501500000 | Weidmüller

Fuse terminal block, 2 pole, 0.5-10 mm², 500 V, 10 A, 0501500000

Order No.: 50P1344
EAN: 4008190200367
MPN:
0501500000
SAKS 1/35/G25 DB
Series: SAK-Reihe
Weidmüller
0501500000 Weidmüller Fuse Terminals
Image may differ
Unit Price (€ / pc.)
16.1602 € *
Available: 0 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **
Total Price:
16.16 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
16.1602 €

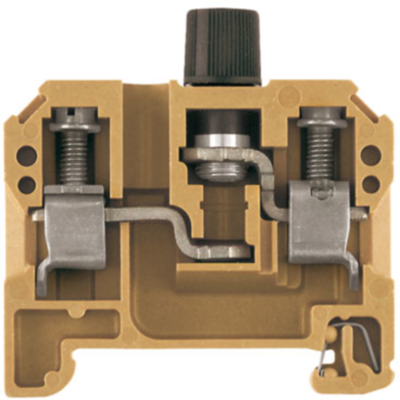

Fuse terminal block, 0501500000, Weidmüller

Fuse terminal block, screw connection, fuse element, open on one side, screw connection, 10 mm², 500 V, 10 A, G-Si. 5x25, TS 35, dark beige

Fuse terminal block consisting of a terminal block base with fuse link carrier.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Sicherungs-Reihenklemme
AWG-Leiterquerschnitt AWG 10 bis 8
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 13 mm
Farbe dunkelbeige
Höhe 54 mm
Länge 53 mm
Leiterquerschnitt 0,5-10 mm²
Nennstrom 10 A
Polzahl 2-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland HU
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
