0531820000 | Weidmüller
Fuse terminal block, 2 pole, 0.5-10 mm², 500 V, 0531820000
Unit Price (€ / pc.)
121.8798 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

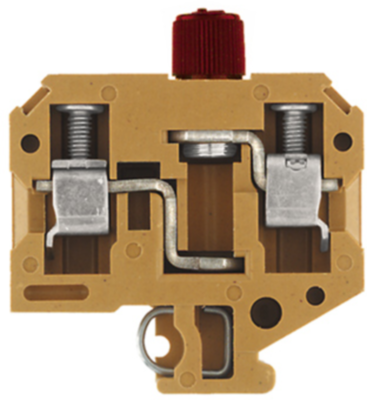

Fuse terminal block, 0531820000, Weidmüller
Fuse terminal block, screw connection, fuse element, with glow lamp, open on one side, screw connection, 10 mm², 500 V, G-Si. 6.3x32, TS 32.
Fuse terminal block consisting of a terminal block base with fuse link carrier.
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | Fuse terminal block | |
| AWG cross-section | AWG 20 to 8 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 13 mm | |
| Colour | yellow | |
| Height | 65 mm | |
| Length | 59.5 mm | |
| Cable cross-section | 0.5-10 mm² | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
