0667420000 | Weidmüller

Fuse terminal block, 2 pole, 0.5-10 mm², 500 V, 10 A, 0667420000

Order No.: 50P1907
EAN: 4008190526115
MPN:
0667420000
SAKS 3/35 (RED CAP)
Series: SAK-Reihe
Weidmüller
0667420000 Weidmüller Fuse Terminals
Image may differ
Unit Price (€ / pc.)
21.0987 € *
Available: 0 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **
Total Price:
21.10 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
21.0987 €

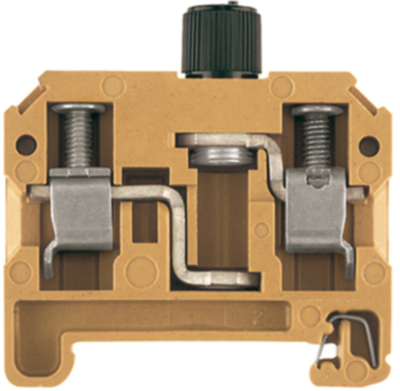

Fuse terminal block, 0667420000, Weidmüller

Fuse terminal block, screw connection, fuse element, open on one side, screw connection, 10 mm², 500 V, 10 A, G-Si. 1x1/4, TS 35, medium yellow.

Fuse terminal block consisting of a terminal block base with fuse link carrier.

Technical specifications
Connection screw connection
Number of terminals 2
Version Fuse terminal block
AWG cross-section AWG 20 to 8
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 13 mm
Colour yellow
Height 65 mm
Length 59.5 mm
Cable cross-section 0.5-10 mm²
Rated current 10 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin HU
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
