1368700000 | Weidmüller
Fuse terminal block, 2 pole, 0.5-10 mm², 500 V, 10 A, 1368700000
Unit Price (€ / pc.)
32.725 € *
Available: 0 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **

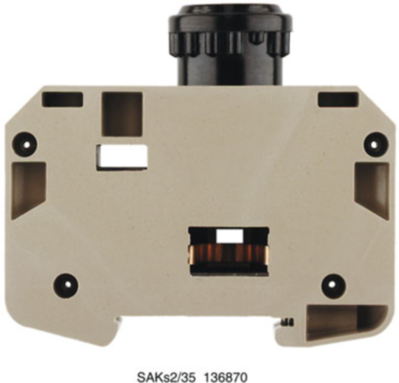

Fuse terminal block, 1368700000, Weidmüller
Fuse terminal block, screw terminal, fuse element, for screwable cross-connection, open on one side, screw terminal, 10 mm², 500 V, 10 A.
Fuse terminal block consisting of a terminal block base with fuse link carrier.
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | Fuse terminal block | |
| AWG cross-section | AWG 22 to 8 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 27.6 mm | |
| Colour | dark beige | |
| Height | 80 mm | |
| Length | 73.5 mm | |
| Cable cross-section | 0.5-10 mm² | |
| Rated current | 10 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
